README

glydraw is a ggplot2-native R engine for drawing reproducible SNFG glycan cartoons from glycan structure objects or text notations, with support for batch export, structural highlighting, and deep appearance customization.

Installation

Install glycoverse

We recommend installing the meta-package glycoverse, which includes this package and other core glycoverse packages.

Install glydraw alone

If you don’t want to install all glycoverse packages, you can only install glydraw.

pak::pkg_install("glydraw")

pak::repo_add(glycoverse = "https://glycoverse.r-universe.dev")
pak::pkg_install("glydraw")

pak::pkg_install("glycoverse/glydraw@*release")

pak::pkg_install("glycoverse/glydraw")

Example

Plot one glycan

library(glydraw)

glycan <- paste0(
  "Glc(a1-2)Glc(a1-3)Glc(a1-3)Man(a1-2)Man(a1-2)Man(a1-3)[Man(a1-2)Man(a1-3)",
  "[Man(a1-2)Man(a1-6)]Man(a1-6)]Man(b1-4)GlcNAc(b1-4)GlcNAc(a1-"
)
draw_cartoon(glycan, red_end = "PP-Dol")

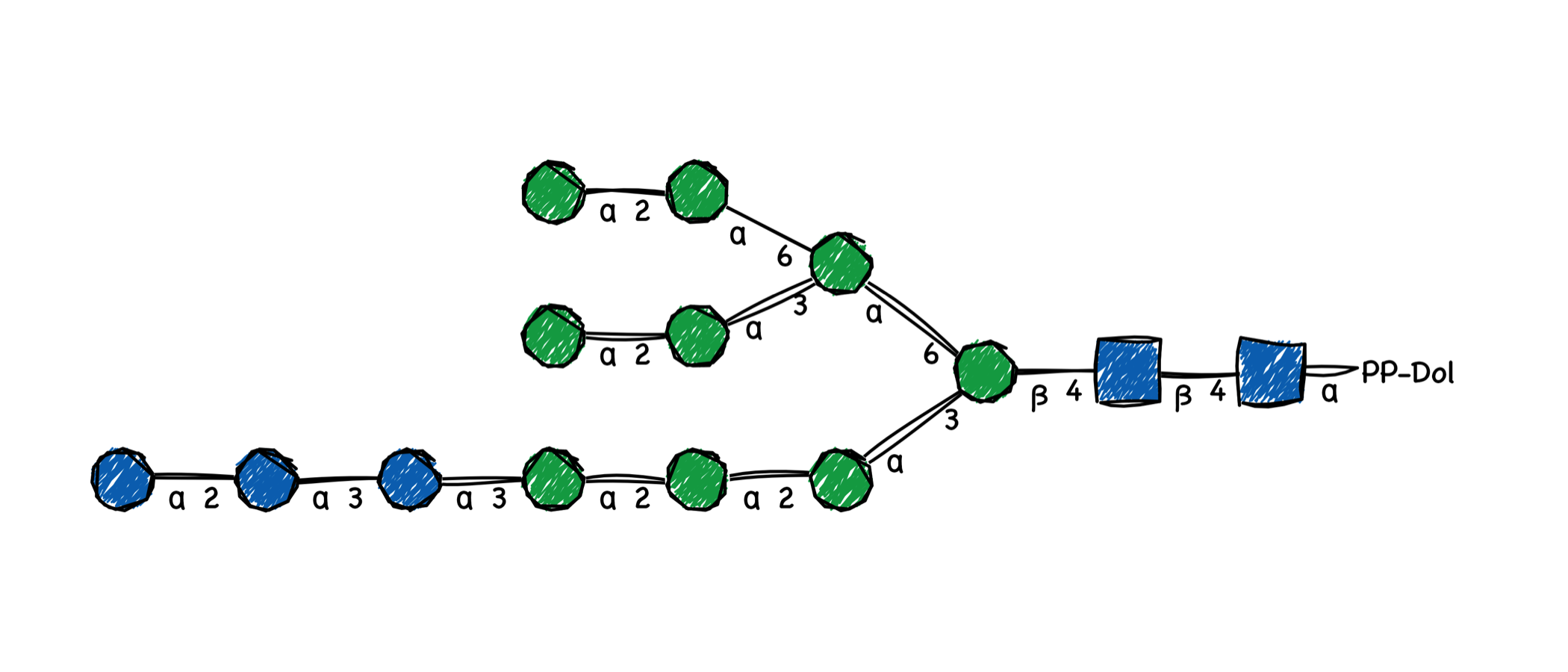

Plot one sketch-style glycan

draw_cartoon_sketch() plots a glycan cartoon with hand-drawn strokes and patterned residue fills.

library(glydraw)

glycan <- paste0(
  "Glc(a1-2)Glc(a1-3)Glc(a1-3)Man(a1-2)Man(a1-2)Man(a1-3)[Man(a1-2)Man(a1-3)",
  "[Man(a1-2)Man(a1-6)]Man(a1-6)]Man(b1-4)GlcNAc(b1-4)GlcNAc(a1-"
)
draw_cartoon_sketch(glycan, red_end = "PP-Dol", seed = 1)

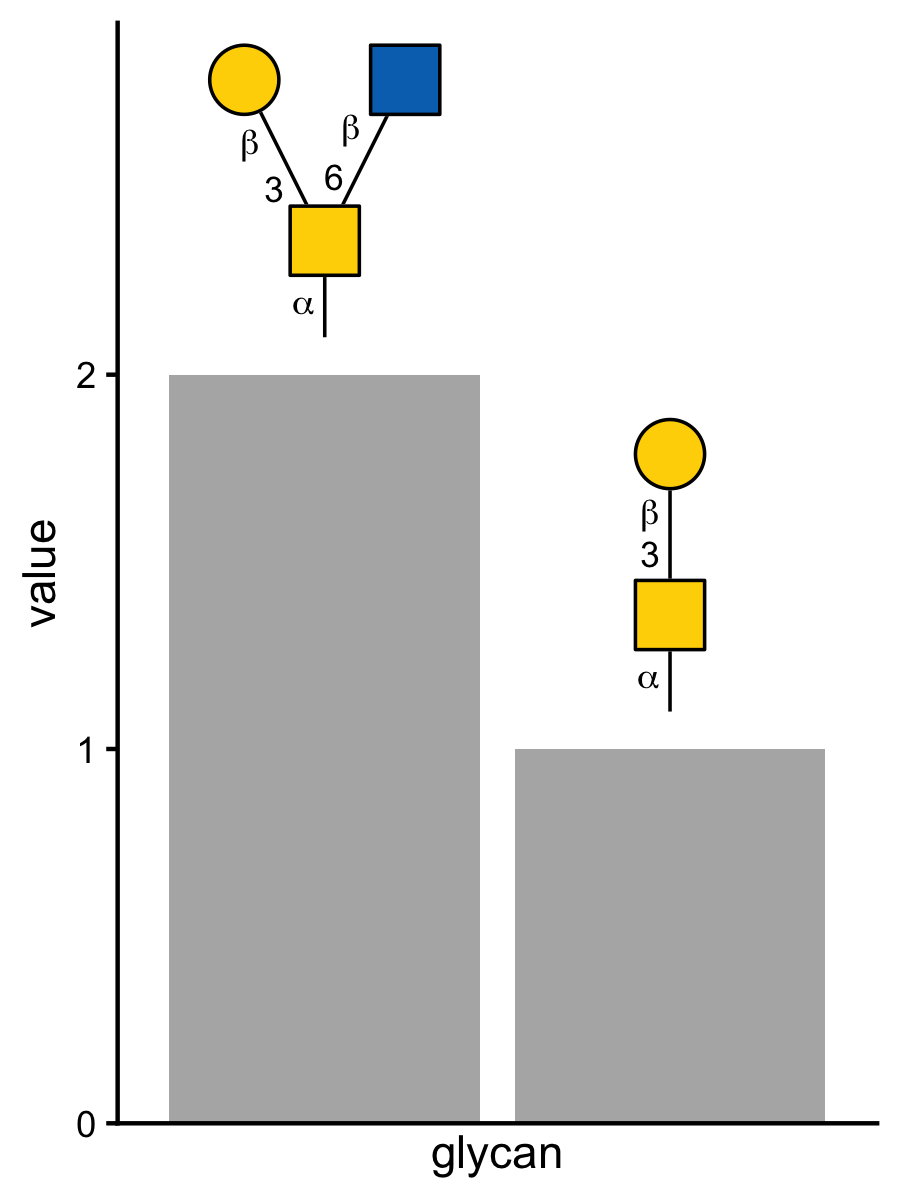

ggplot2 extension

glydraw provides ggplot2 extensions to plot glycan cartoons on a panel, axis, or legend. For example, geom_glycan() adds glycan cartoons to a bar plot:

library(ggplot2)
library(glydraw)
library(tibble)

plot_data <- tibble(
  glycan = c("Gal(b1-3)GalNAc(a1-", "Gal(b1-3)[GlcNAc(b1-6)]GalNAc(a1-"),
  value = c(1, 2)
)

ggplot(plot_data, aes(glycan, value)) +
  geom_col(fill = "grey70") +
  geom_glycan(
    aes(structure = glycan),
    orient = "up",
    size = 0.5,
    vjust = 0,
    position = position_nudge(y = 0.1)
  ) +
  scale_y_continuous(expand = expansion(mult = c(0, 0.4))) +
  theme_classic() +
  theme(
    axis.text.x = element_blank(),
    axis.ticks.x = element_blank()
  )

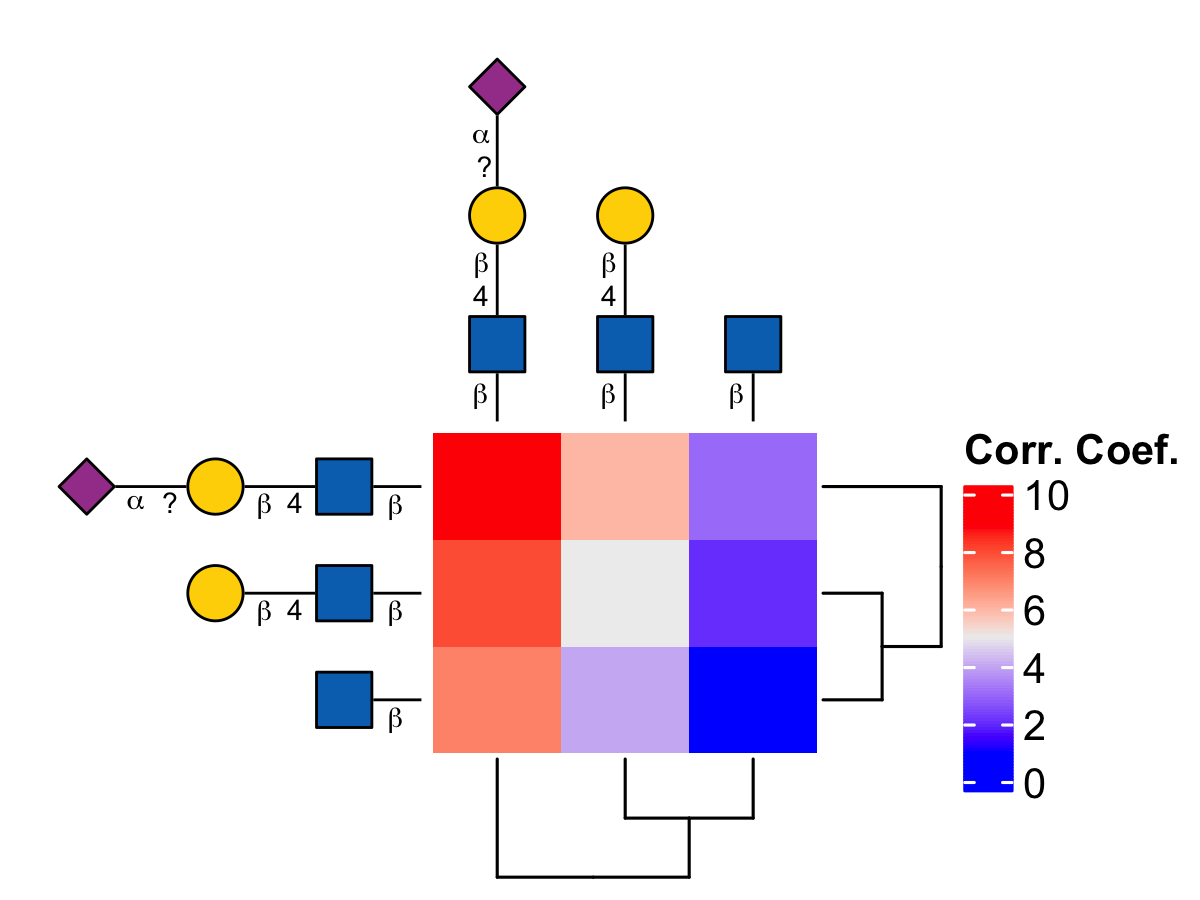

ComplexHeatmap extension

anno_glycan() adds glycan cartoons as row or column labels in a ComplexHeatmap heatmap.

suppressPackageStartupMessages(library(ComplexHeatmap))

mat <- matrix(
  seq_len(9),
  nrow = 3,
  dimnames = list(paste0("row", 1:3), paste0("column", 1:3))
)
structures <- c(
  "GlcNAc(b1-",
  "Gal(b1-4)GlcNAc(b1-",
  "Neu5Ac(a2-?)Gal(b1-4)GlcNAc(b1-"
)

Heatmap(
  mat,
  name = "Corr. Coef.",
  show_row_names = FALSE,
  show_column_names = FALSE,
  row_dend_side = "right",
  column_dend_side = "bottom",
  left_annotation = rowAnnotation(
    glycan = anno_glycan(structures, which = "row")
  ),
  top_annotation = HeatmapAnnotation(
    glycan = anno_glycan(structures, which = "column")
  )
)

Gallery

glycan <- paste0(
  "Neu5Ac(a2-3)Gal(b1-3)[Fuc(a1-2)Gal(b1-3)[Fuc(a1-4)]GlcNAc(b1-3)",
  "[Gal(b1-4)[Fuc(a1-3)]GlcNAc(b1-6)]Gal(b1-4)GlcNAc(b1-6)]GalNAc(a1-"
)
draw_cartoon(glycan, style = style_glygen())

glycan <- "Gal(b1-3)[Neu5Ac(a2-3)Gal6S(b1-4)[Fuc(a1-3)]GlcNAc(b1-6)]GalNAc(a1-"
draw_cartoon(glycan, orient = "up", red_end = "Ser/Thr")

glycan <- "Fuc(a1-3)[Fuc(a1-6)]GlcNAc(b1-"
draw_cartoon(
  glycan,
  orient = "up",
  red_end = "Asn",
  style = style_glydraw(fuc_orient = "up")
)

glycan <- paste0(
  "WURCS=2.0/3,4,3/[a2122h-1a_1-5_2*N][a1122h-1a_1-5_2*OP^XOCCN/3O/3=O]",
  "[a1122h-1a_1-5_6*OP^XOCCN/3O/3=O]/1-2-3-3/a4-b1_b6-c1_c2-d1"
)
draw_cartoon(glycan)

glycan <- "Glc(b1-4)[Xyl(a1-6)][Xyl(a1-2)]Glc(b1-4)[Xyl(a1-6)]Glc(b1-4)[Fuc(a1-2)Gal(b1-2)Xyl(a1-6)]Glc(b1-4)Glc(b1-4)[Xyl(a1-6)]Glc(b1-"
draw_cartoon(glycan, style = style_glydraw(fuc_orient = "up"))
